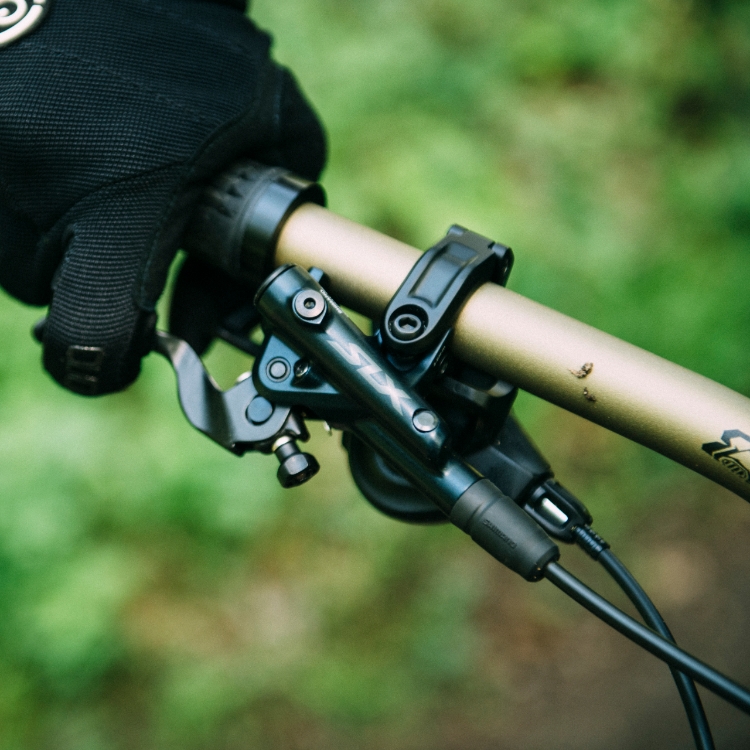

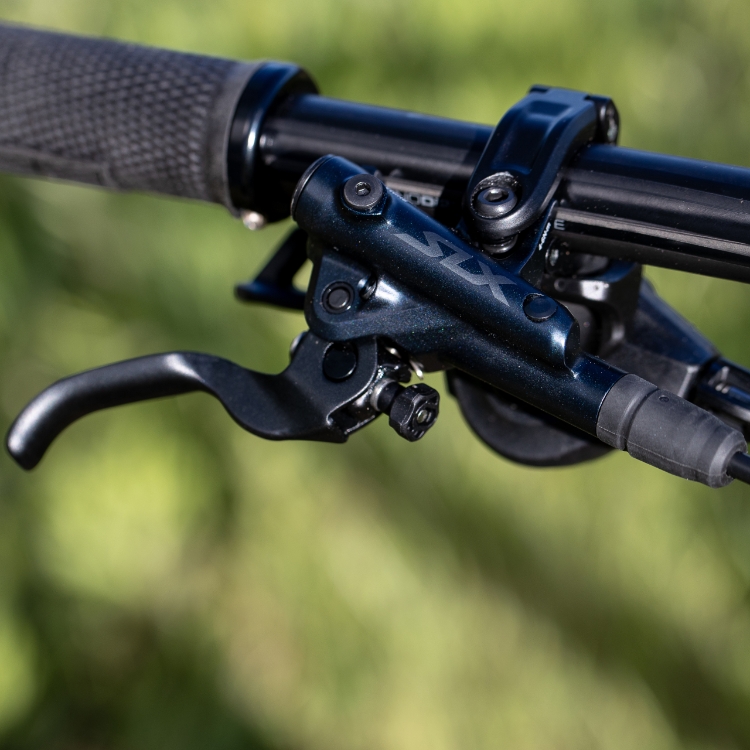

SLX - Hydraulic Disc Brake Lever - I-SPEC EV Clamp Band
With a focus on reduced weight and cross-country tuned stopping power, the SLX BL-M7100 lever provides intuitive modulation so that you can explore your limits with confidence.
FEATURES
- Seamless braking raises rider concentration and enjoyment
- Optimized lever axle position with additional contact point and refined ergonomics
- Stable and versatile high-performance brake control
- 10% stiffer than M7000 even under high temp conditions
- Quicker brake engagement with shorter free stroke
- Rider tunable
- Greater flexibility and action-optimized cockpit layout
- I-SPEC EV
- Simple set up and adjustment
- Toolless reach adjust
PRODUCT SPECIFICATIONS
| MODEL NO | BL-M7100 |
|---|
| SERIES | SLX M7100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 107 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 2 |
|---|
| Brake hose (Kit) | SM-BH90-SBM |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| SERVO WAVE | ✔ |
|---|
| Reach adjust|Toolless | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC EV | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 20 |
|---|
| Recommended brake caliper | BR-M7100, BR-M7110-R, BR-M7120 |
|---|
| Oil | SHIMANO mineral |
|---|
| Funnel bleeding | ✔ |
|---|

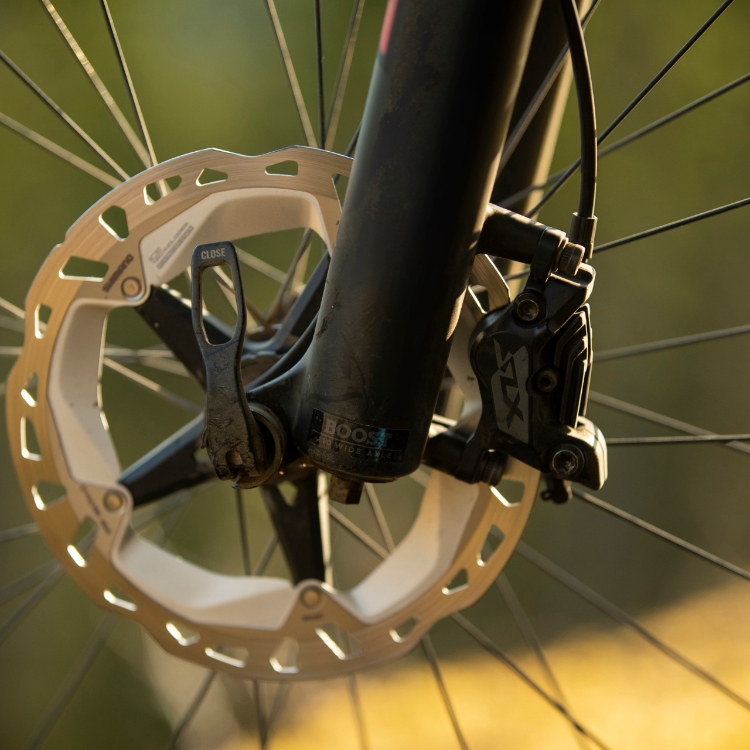

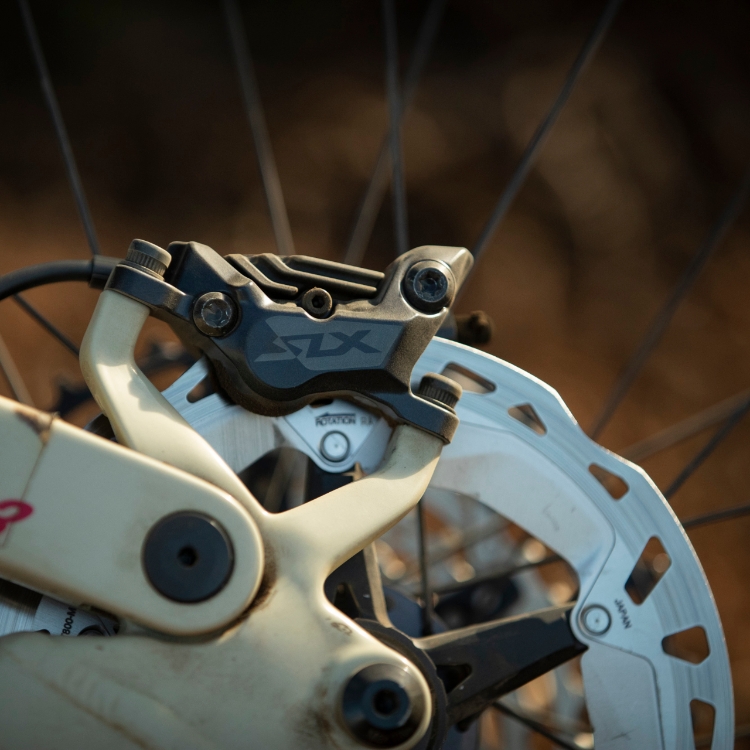

SLX - 4-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SLX M7120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
FEATURES
- Stable and versatile high-performance brake control
- Quicker Piston retraction
- High power braking instills greater downhill confidence and control
- Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M7000)
- Four Piston
- Quick and easy assembly
- Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M7120 |
|---|
| SERIES | SLX M7100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 142 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SBM |
|---|
| Hose joint | Banjo |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | D03S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | N03A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | D02S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | N04C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | BL-M7100 |
|---|
| Recommended disc brake rotor | SM-RT70 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Compatible brake rotor size|220 mm (LL) | ✔ |
|---|
| Oil | SHIMANO mineral |
|---|
| Mount type | Post type |
|---|
| Piston | 4 |
|---|
| Caliper fixing bolt|Tool size | 5 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Snap ring |
|---|
| Pad mount | Pad axle |
|---|
