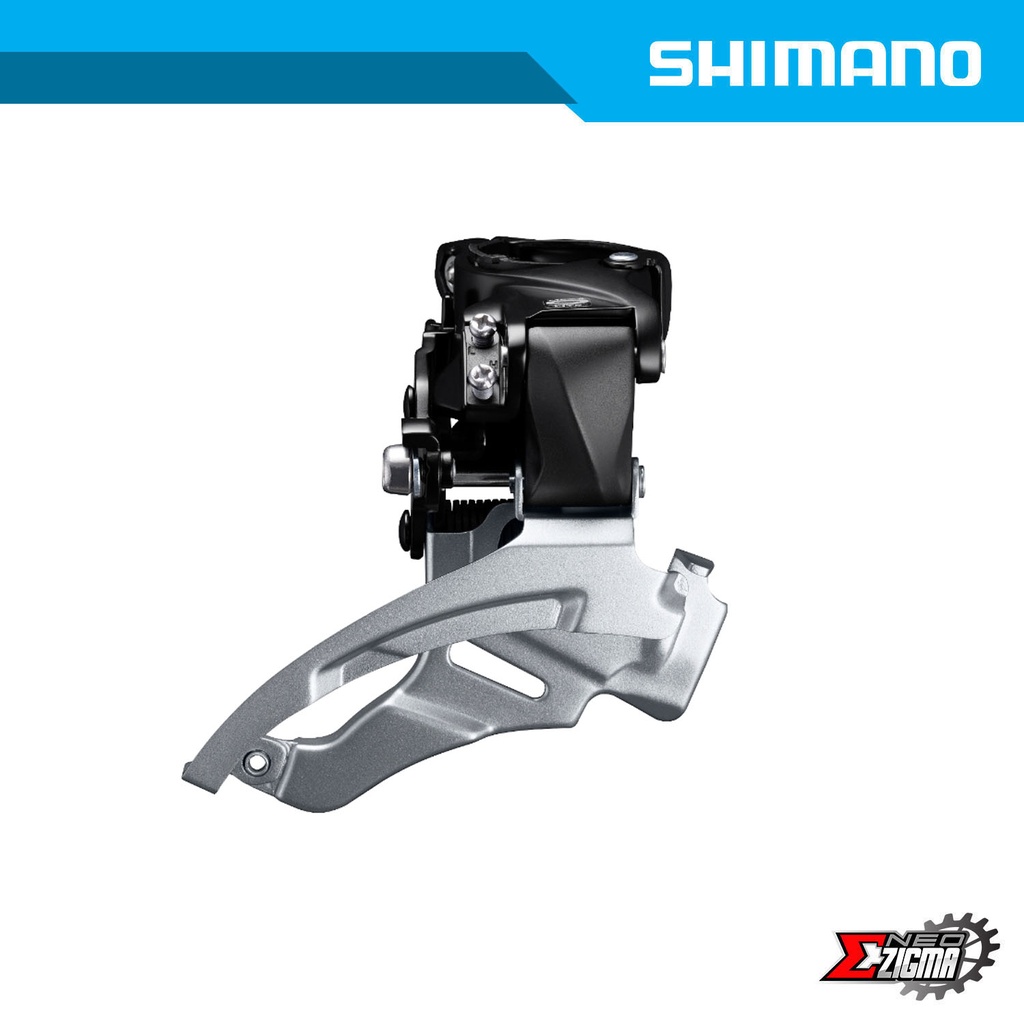

SHIMANO ALTUS - Front Derailleur - Down Swing - Clamp Band Mount - 3x9-speed
Designed for 3x9 speed drivetrains, the SHIMANO ALTUS front derailleur is HYPERDRIVE compatible and available in down swing and top swing versions.
FEATURES
PRODUCT SPECIFICATIONS
| MODEL NO | FD-M2000-DS3 |
|---|
| SERIES | ALTUS M2000 Series |
|---|
| Color | Black |
|---|
| Front speeds | 3 |
|---|
| Rear speeds | 9 |
|---|
| Compatible chain | HG 9-speed |
|---|
| Action|Down Swing | ✔ |
|---|
| Mount|Clamp Band (mm)|28.6 | X (w/ S size adapter) |
|---|
| Mount|Clamp Band (mm)|31.8 | X (w/ M size adapter) |
|---|
| Mount|Clamp Band (mm)|34.9 | ✔ |
|---|
| Cable route type|Dual-Pull | ✔ |
|---|
| Chain line (mm) | 50 |
|---|
| Chain stay angle (deg.) | 63-66 |
|---|
| Top gear teeth | 40T |
|---|
| Total capacity | 18T |
|---|
| Applicable top-mid tooth difference | 10T |
|---|
| Angled stroke adjust screw | ✔ |
|---|
| Angled clamp band design | ✔ |
|---|
