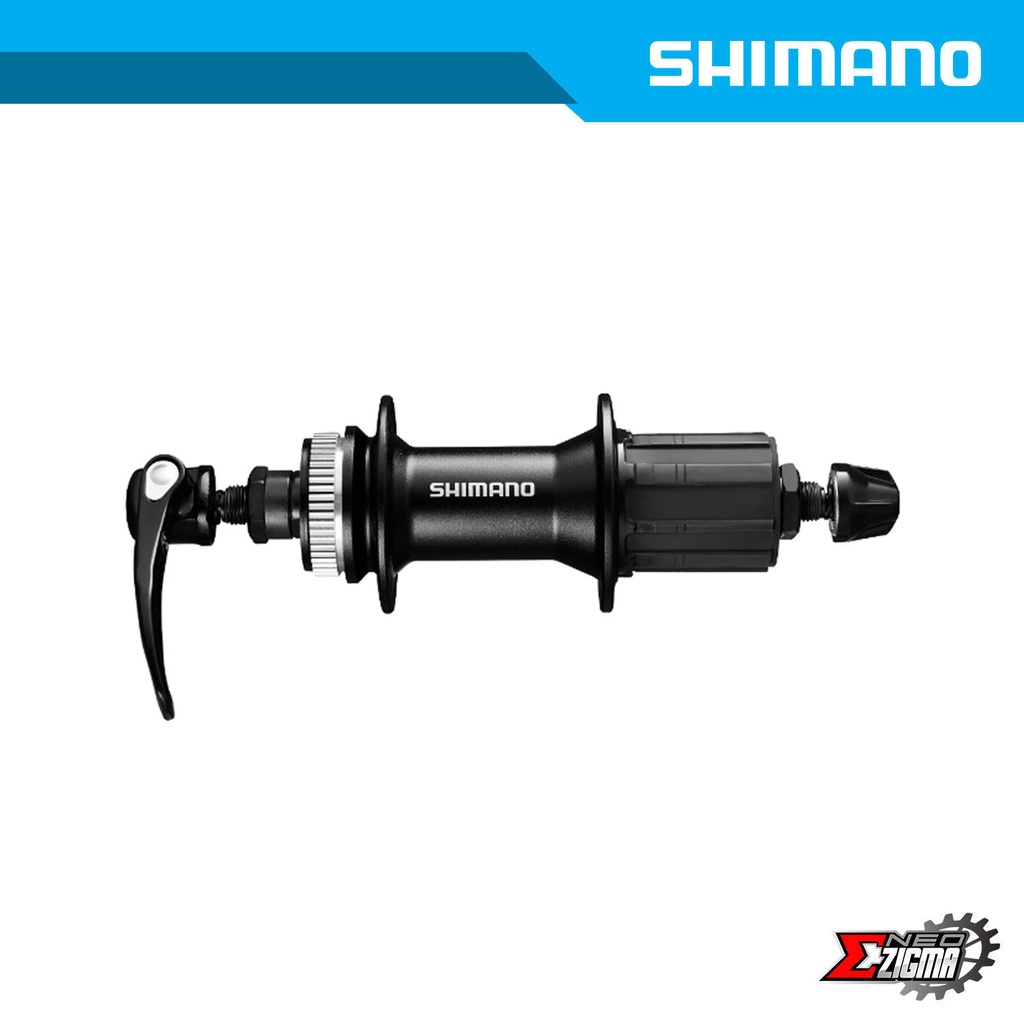

SHIMANO ALIVIO - Rear FREEHUB - CENTER LOCK - Disc Brake - Quick Release - 11-speed
Available in silver and black, the SHIMANO ALIVIO FH-M4050 offers long durability thanks to its high quality seals and cup and cone bearings. It is compatible with CENTER LOCK disc rotors and quick release dropouts.
FEATURES
- Long durability with high quality mud prevention seal
- Adjustable bearing system (Cup & Cone)
- Alloy quick release lever with steel housing
- CENTER LOCK system for easy set up
- Color options: Black, Silver
PRODUCT SPECIFICATIONS
| MODEL NO | FH-M4050 |
|---|
| SERIES | SHIMANO ALIVIO M4000 Series |
|---|
| Color | Black | Silver |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Color|2 Hub shell | Silver |
|---|
| Color|2 Quick release | Black |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| Rear speeds | 11/10/9/8 |
|---|
| O.L.D. (mm) | 135 |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Internal serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|168 | ✔ |
|---|
| Quick release skewer length (mm)|173 | ✔ |
|---|
| Flange distance (mm) | 57.4 |
|---|
| Offset (mm) | 6.6 |
|---|
| P.C.D. left / right (mm) | 45/45 |
|---|
| Flange diameter Left/Right (mm) | 53.8 |
|---|
| HG spline (Others) | ✔ |
|---|
| Engagement type | Pawl ratchet |
|---|
| Seal|Hub | Labyrinth & Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
