The ideal Free Hub for smooth and decisive e-bike shifting
FEATURES
- Access the smooth and reliable shift performance of LINKGLIDE.
- Compatible with 11/10-speed, O.L.D. 135 mm
- Durable construction
- Included FREEHUB spacer required for use with LINKGLIDE cassettes
- Compatible with #13 spoke
PRODUCT SPECIFICATIONS

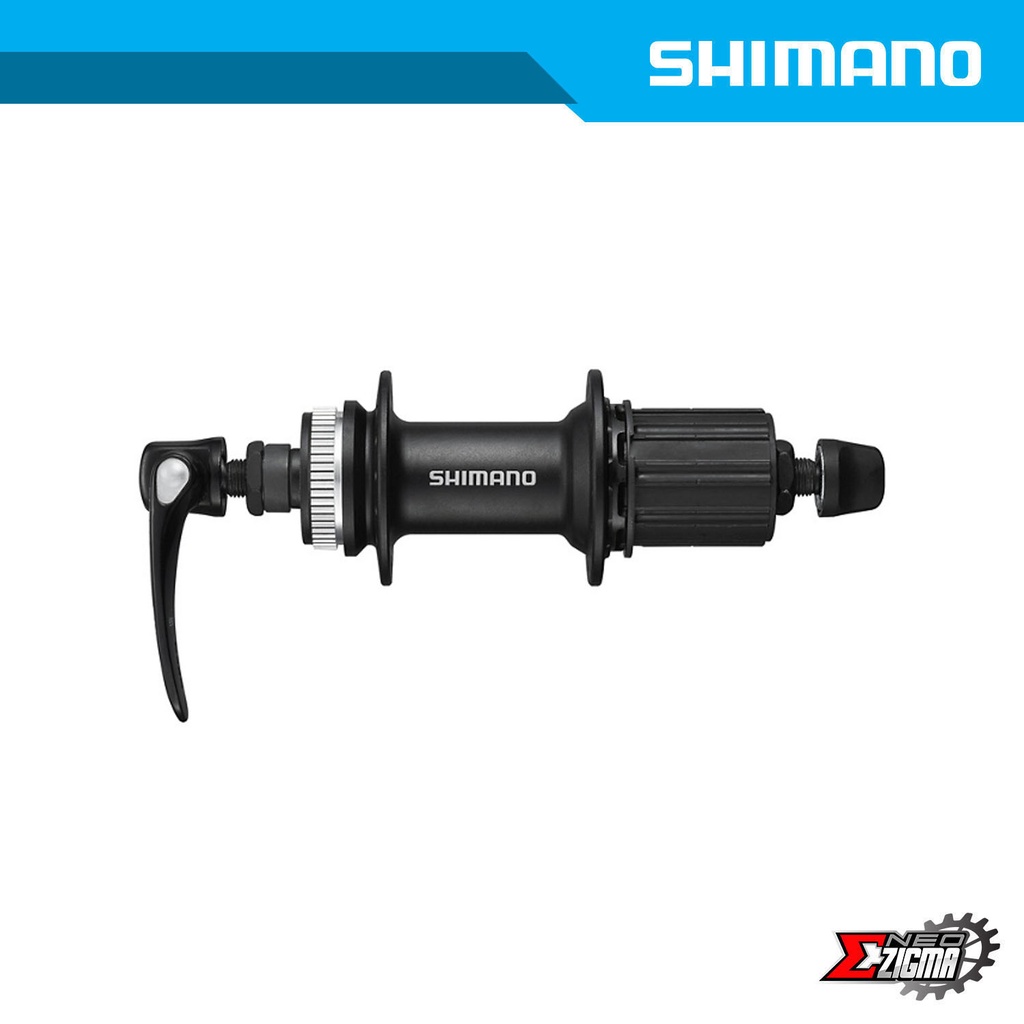

| MODEL NO | FH-UR600 |
|---|
| SERIES | SHIMANO |
|---|
| Remarks | * Used with an additional spacer. |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| Rear speeds | 11/10 * |
|---|
| O.L.D. (mm) | 135 |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Internal serration disc brake rotor lock ring|without | ✔ |
|---|
| Disc Mount|CENTER LOCK mount cover option | ✔ |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|168 | ✔ |
|---|
| Quick release skewer length (mm)|173 | ✔ |
|---|
| Flange distance (mm) | 55.7 |
|---|
| Offset (mm) | 7.45 |
|---|
| P.C.D. left / right (mm) | 44.6/44.6 |
|---|
| Flange diameter Left/Right (mm) | 53.5/53.8 |
|---|
| HG spline (ROAD 11-speed) | ✔ |
|---|
| Engagement type | Pawl ratchet |
|---|
| Seal|Hub | Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
